📊 PAI vs PVDF Materials: Application Scenario Comparison & Grade Selection Guide for Industrial Use
In the field of high-performance engineering plastics, Polyamide-Imide (PAI) and Polyvinylidene Fluoride (PVDF) are two indispensable materials, widely used in aerospace, chemical processing, semiconductor, and oil & gas industries. However, their distinct chemical structures and performance advantages make them suitable for different application scenarios. This blog focuses on Solvay Torlon® Series PAI materials and Arkema Kynar® Series PVDF products, compares their application scope in detail, provides a professional PAI material selection guide, and integrates high-value long-tail keywords to help industrial buyers, engineers, and procurement personnel make optimal material choices.
📌 Introduction to PAI (Polyamide-Imide) Materials & Solvay Torlon® Series Overview
PAI, short for Polyamide-Imide, is a high-performance thermoplastic that integrates the thermal stability of polyimides and the processability of polyamides. It stands out with exceptional mechanical strength at extreme temperatures (up to 275°C/525°F), inherent flame resistance (UL94 V-0 rating), and excellent resistance to strong acids, most organic solvents, and oxidation. These properties make PAI the preferred material for critical components in harsh environments.
As the industry benchmark for PAI materials, Solvay Torlon® Series offers a comprehensive product line tailored to diverse industrial needs, categorized into high-strength grades, wear-resistant grades, and specialty grades. Each grade is engineered to address specific application challenges, making Torlon® PAI the first choice for precision components in high-end industries.
🔍 Solvay Torlon® Series PAI Material Selection Guide
Selecting the right Torlon® PAI grade requires evaluating four core parameters: operating temperature range, mechanical load requirements, chemical exposure environment, and processing method. Below is a detailed breakdown of Solvay Torlon® grades to simplify your selection process.
1. High-Strength Torlon® PAI Grades for Load-Bearing Applications
Designed for load-bearing components requiring metal-like performance at elevated temperatures, these grades excel in creep resistance and dimensional stability under high stress.
Torlon® 4203L is an unfilled general-purpose PAI grade with balanced strength and toughness. It maintains flexibility from cryogenic temperatures (-200°C) to 275°C, making it ideal for Solvay Torlon® 4203L PAI semiconductor test sockets used in 3nm chip production lines and low-load aerospace fasteners for commercial airliners. This versatile grade is cost-effective for multi-environment precision components, such as medical device connectors that require both thermal stability and biocompatibility. Torlon® 5030, a 30% glass fiber-reinforced PAI grade, boasts 40% higher mechanical strength than unfilled grades with ultra-low creep. It is recommended for Torlon® 5030 PAI high-temperature automotive transmission parts in electric vehicles (EVs) and oil & gas downhole guide components for deepwater drilling projects, where stiffness and thermal stability under 200°C operating conditions are critical. Torlon® 7130 is a carbon fiber-reinforced PAI grade with exceptional fatigue resistance and rigidity, delivering superior specific tensile strength compared to titanium alloy. It is perfect for Torlon® 7130 PAI
aerospace engine shrouds in military aircraft and high-speed rotating shafts in lightweight industrial centrifuges, enabling weight reduction of up to 30% compared to metal alternatives.
2. Wear-Resistant Torlon® PAI
Grades for Dry/Lubricated Environments
Formulated with lubricating additives (PTFE, graphite) or reinforcing fibers, these grades minimize friction and wear in dry or marginally lubricated conditions.
Torlon® 4630 is a PTFE + graphite-filled wear-resistant grade with a wear rate 40% lower than standard PEEK. It is tailored for Torlon® 4630 PAI no-lubrication compressor bearings in air separation plants and chemical valve seats for petrochemical reactors, suitable for dry wear industrial applications where lubricant contamination is a concern. Torlon® 4645, a carbon fiber + PTFE-filled grade optimized for high-PV (pressure-velocity) scenarios, operates reliably at PV values up to 1.5 MPa·m/s. It is ideal for automotive clutch actuation seal rings in heavy-duty trucks and hydraulic system bushings in construction machinery, maintaining stable performance under continuous load. Torlon® 4275 is a high-speed wear grade designed for precision bearing isolators and rotating machinery components. It maintains a low friction coefficient even at 250°C, ensuring long-term performance in high-temperature rotating equipment like gas turbine auxiliary systems, with a service life extending up to 5,000 operating hours.
3. Specialty Torlon® PAI Grades for Niche Applications
Custom-formulated for unique processing or performance requirements, these grades cater to niche industrial needs.
Torlon® 4601 is an undercut tooling grade with excellent flowability, enabling intricate mold designs for custom PAI deep-groove bearings in semiconductor wafer transfer robots and complex-shaped components like aerospace sensor housings. Torlon® AI Series includes soluble powder grades (AI-10, AI-30) for high-temperature coatings and adhesives. The water-soluble AI-30 variant meets low-VOC regulations, suitable for eco-friendly PAI electrical wire insulation in high-voltage transformers and corrosion-resistant surface treatments for marine engine parts. Torlon® 4000T Series base resin powders are used for compounding with PEEK, PPSU, or other polymers to enhance heat resistance. They are widely applied in custom PAI composite matrices for aerospace interior panels and specialty PAI films for flexible printed circuits (FPCs) in high-temperature electronic devices.
🧪 Introduction to PVDF Materials & Arkema Kynar® Series Products
PVDF (Polyvinylidene Fluoride) is a fluoropolymer renowned for its outstanding chemical resistance, weatherability, and electrical insulation properties. It can withstand a wide range of corrosive media, including strong acids, alkalis, and organic solvents, and operates stably at temperatures up to 150°C (302°F). PVDF also exhibits excellent UV resistance and flame retardancy, making it suitable for outdoor and chemical exposure applications.
Arkema Kynar® Series PVDF products are global leaders in fluoropolymer materials, offering a full range of grades for extrusion, injection molding, film casting, and coating applications. Key grades include Kynar® 740, Kynar® 900, and Kynar® Flex, each optimized for specific processing methods and application scenarios.
Arkema Kynar® 740 is a high-molecular-weight PVDF grade with excellent mechanical strength and processability. It is ideal for Arkema Kynar® 740 PVDF chemical storage tanks holding 98% sulfuric acid, pipes, and fittings in pharmaceutical API production plants, where chemical inertness and structural integrity are non-negotiable. Arkema Kynar® 900 is a medium-molecular-weight grade designed for film and sheet extrusion. It is widely used in PVDF solar panel backsheets for utility-scale photovoltaic projects and corrosion-resistant linings for municipal wastewater treatment tanks, leveraging its superior weatherability with a service life of over 25 years outdoors. Arkema Kynar® Flex is a flexible PVDF grade blended with other fluoropolymers, suitable for automotive fuel lines in hybrid vehicles and industrial hoses that transport corrosive chemicals like hydrofluoric acid, requiring both chemical resistance and flexibility for tight routing.
🔬 PAI vs PVDF: Application Scenario Comparison
To help you select the right material for your project, we compare Solvay Torlon® PAI and Arkema Kynar® PVDF across core industrial application scenarios, highlighting their advantages, limitations, and optimal use cases.
1. Chemical Processing Industry
Chemical processing involves exposure to corrosive media, high pressure, and varying temperatures, requiring materials with robust chemical resistance and structural stability.
PAI (Solvay Torlon®) excels in high-temperature acidic environments (up to 275°C) and maintains mechanical strength under load. Torlon® 5030 PAI is preferred for high-temperature chemical reactor internals in ethylene production plants, where it withstands 220°C operating temperatures and concentrated acetic acid exposure. Torlon® 4630 PAI is suitable for dry-wear valve stems in nitric acid storage systems, reducing maintenance frequency by 60% compared to metal alternatives. However, PAI degrades in concentrated alkaline solutions (pH > 12) and steam environments above 180°C, limiting its use in caustic soda production and high-pressure steam pipelines. PVDF (Arkema Kynar®) outperforms PAI in harsh alkaline, steam, and oxidizing environments. Arkema Kynar® 740 PVDF is ideal for chemical storage tanks, pipes, and pump housings handling sodium hydroxide solutions in pulp and paper mills. It also resists UV degradation, making it suitable for outdoor chemical processing equipment like bleach storage tanks. However, PVDF’s low-temperature toughness (brittle below -40°C) and high-temperature strength (mechanical properties drop sharply above 120°C) are inferior to PAI, restricting its use in cryogenic chemical handling and high-temperature reactors.
Long-tail keyword: PAI vs PVDF chemical resistance comparison for chemical valve components.
2. Semiconductor Industry
Semiconductor manufacturing requires materials with high purity, dimensional stability, and resistance to cleaning chemicals (e.g., HF, H2SO4) and high temperatures.
PAI (Solvay Torlon®) is a staple in semiconductor manufacturing due to its high purity and dimensional stability. Torlon® 4203L PAI is widely used for precision semiconductor test sockets in 5G chip testing, as it maintains dimensional accuracy at 150-250°C during thermal cycling tests and resists most organic cleaning solvents like isopropyl alcohol. Torlon® 7130 PAI is suitable for high-temperature wafer handling components in semiconductor foundries, such as wafer chucks for 300mm wafers, due to its exceptional rigidity and low outgassing properties. PVDF (Arkema Kynar®) finds application in semiconductor wet process equipment linings and chemical delivery systems. Arkema Kynar® 900 PVDF films are applied as corrosion-resistant coatings for wet bench surfaces that come into contact with hydrofluoric acid (HF) and sulfuric acid (H2SO4) mixtures. However, PVDF’s high-temperature stability (max 150°C) limits its use in high-heat processes like wafer annealing (typically 800-1000°C) and plasma etching chambers, where PAI or ceramic materials are preferred.
Long-tail keyword: Solvay Torlon® PAI vs Arkema Kynar® PVDF for semiconductor test sockets.
3. Aerospace Industry
Aerospace components demand materials with lightweight, high strength, and resistance to extreme temperatures and aerospace fuels.
PAI (Solvay Torlon®) dominates in high-temperature aerospace applications where lightweight and durability are critical. Torlon® 7130 PAI is used for engine shrouds, turbine components, and fasteners in commercial jet engines like the Boeing 787’s Trent 1000, as it retains 80% of its tensile strength at 250-275°C and offers superior fatigue resistance under cyclic loading. Torlon® 4645 PAI is suitable for hydraulic system bushings in military aircraft like the F-16, withstanding high pressure and temperature fluctuations without lubrication. PVDF (Arkema Kynar®) is rarely used in high-temperature aerospace components due to its temperature limitation. It is occasionally used for non-structural parts like cabin interior panels and wire insulation in civil aircraft, leveraging its flame retardancy (UL94 V-0 rating) and resistance to aviation fuels and hydraulic fluids. Arkema Kynar® Flex PVDF is also used in aircraft fuel line liners for small general aviation planes, providing chemical compatibility with Jet A-1 fuel.
Long-tail keyword: PAI Torlon® 7130 aerospace engine components vs PVDF limitations.
4. Automotive Industry
Automotive applications require materials with heat resistance, wear resistance, and compatibility with fuels and lubricants.
PAI (Solvay Torlon®) is well-suited for high-temperature automotive components exposed to extreme heat and wear. Torlon® 5030 PAI is used for high-temperature transmission parts and exhaust system components in performance vehicles like Porsche 911 GT3, withstanding exhaust gas temperatures up to 220°C. Torlon® 4645 PAI is ideal for clutch actuation seal rings and gearbox bushings in heavy-duty diesel trucks, offering excellent wear resistance under lubricated conditions and extending component life by 2-3 times compared to conventional plastics. PVDF (Arkema Kynar®) shines in automotive fuel system applications. Arkema Kynar® Flex PVDF is used for automotive fuel lines and fuel tank linings in electric vehicles (EVs) and hybrid cars, as it resists gasoline, diesel, biofuels (E85), and battery electrolytes. It also provides UV resistance for exterior trim parts like door handles and mirror housings, maintaining color stability for over 10 years of outdoor exposure.
Long-tail keyword: PAI vs PVDF for automotive high-temperature transmission components.

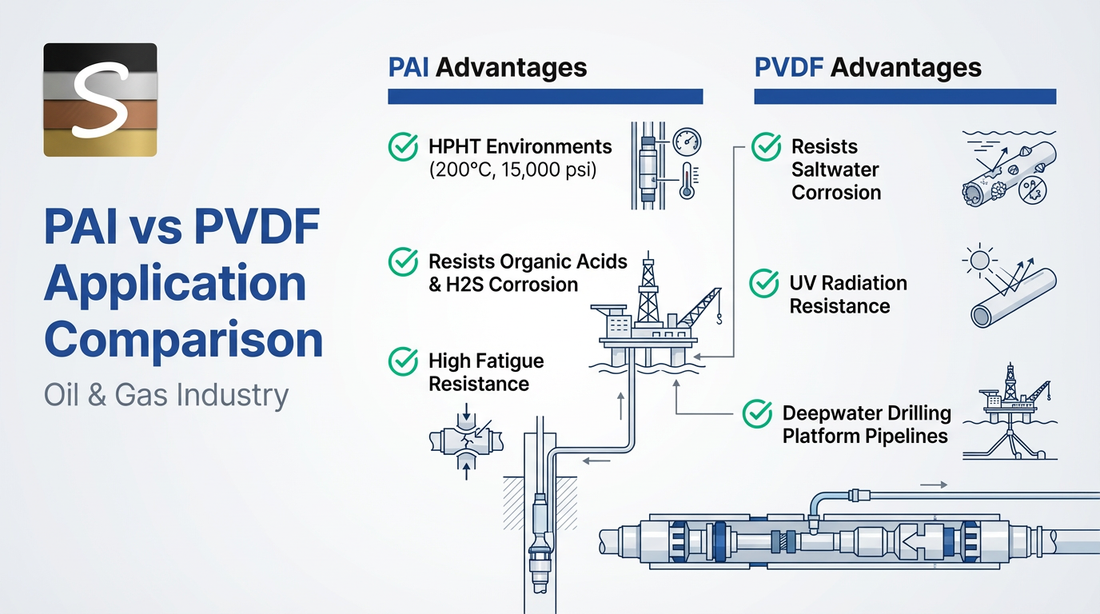

5. Oil & Gas Industry
Oil & gas exploration and production involve high pressure, high temperature (HPHT), and corrosive media (e.g., H2S, saltwater).
PAI (Solvay Torlon®) is a reliable choice for oil & gas HPHT environments. Torlon® 5030 PAI is used for downhole guide sleeves and valve components in shale gas drilling operations, as it withstands HPHT environments (up to 200°C and 15,000 psi) and resists organic acids and H2S corrosion. Torlon® 7130 PAI is suitable for high-speed rotating shafts in drilling equipment like mud pumps, offering superior fatigue resistance and reducing downtime due to component failure.PVDF (Arkema Kynar®) is widely used in offshore and onshore oil & gas applications requiring corrosion resistance. Arkema Kynar® 740 PVDF is used for offshore platform pipes and fittings, as it resists saltwater corrosion, UV radiation, and exposure to crude oil and drilling fluids. It is also used in downhole chemical injection lines for enhanced oil recovery (EOR) projects, where it transports corrosive chemicals like surfactants and acids without degradation.
Long-tail keyword: Solvay Torlon® PAI vs Arkema Kynar® PVDF for oil & gas downhole components.
6. Water Treatment & Environmental Engineering
Water treatment equipment requires materials with resistance to chlorine, disinfectants, and harsh water conditions.
PAI (Solvay Torlon®) is rarely used in water treatment applications, as it is less cost-effective than PVDF and vulnerable to alkaline disinfectants like sodium hypochlorite (bleach) used in drinking water treatment. Its high cost also makes it impractical for large-scale water treatment equipment, where PVDF and other fluoropolymers offer better value. PVDF (Arkema Kynar®) is the preferred material for water treatment membranes, filter housings, and pipes due to its exceptional chlorine resistance and durability. Arkema Kynar® 900 PVDF membranes are widely used in reverse osmosis (RO) systems for seawater desalination plants, offering high permeability (up to 10 LMH/bar) and chlorine resistance (up to 500 ppm), ensuring stable performance for over 5 years. Kynar® 740 PVDF is also used for filter housings in wastewater treatment plants, resisting biological fouling and corrosive cleaning agents.
Long-tail keyword: Arkema Kynar® PVDF for water treatment reverse osmosis membranes.
📋 Key Performance Metrics Comparison: PAI vs PVDF
|
Performance Metric
|
Solvay Torlon® PAI
|
Arkema Kynar® PVDF
|
Optimal Application Scenario
|
|
Max Operating Temperature
|
275°C (525°F)
|
150°C (302°F)
|
PAI: High-temperature industrial processes
|
|
Tensile Strength (Room Temp)
|
80-150 MPa (depending on grade)
|
35-50 MPa
|
PAI: Load-bearing components
|
|
Chemical Resistance
|
Resists acids, organics; poor in alkalis/steam
|
Resists acids, alkalis, steam, UV
|
PVDF: Corrosive alkaline environments
|
|
Wear Resistance
|
Excellent (with PTFE/graphite fillers)
|
Moderate (needs modification)
|
PAI: Dry/wear-intensive components
|
💡 Final Material Selection Recommendations
When choosing between PAI (Solvay Torlon®) and PVDF (Arkema Kynar®), follow these guidelines to optimize component performance and cost-effectiveness:
Operating Temperature is a primary deciding factor: Select Torlon® PAI if the application temperature exceeds 150°C, such as aerospace engine parts, high-temperature chemical reactors, and EV transmission components. Choose Kynar® PVDF for temperatures below 150°C, including chemical storage tanks, water treatment equipment, and automotive fuel systems. Chemical Environment should align with material resistance: Use Kynar® PVDF for alkaline (pH > 10), steam, or oxidizing environments like caustic soda production and bleach storage. Opt for Torlon® PAI for acidic or organic solvent environments with high temperatures, such as nitric acid reactors and semiconductor thermal processing equipment. Mechanical Load requirements dictate grade selection: Torlon® PAI, especially fiber-reinforced grades like 5030 and 7130, is preferred for load-bearing, high-stiffness components like downhole valve stems and aerospace fasteners. PVDF is suitable for non-structural or low-load corrosive applications, such as chemical pipe linings and filter housings. Processing Requirements influence material choice: Torlon® PAI supports injection molding, CNC machining, and compression molding for precision components like semiconductor test sockets and engine parts. Kynar® PVDF is ideal for extrusion (pipes, films) and coating applications, such as solar panel backsheets and chemical tank linings. Application Priority balances performance and suitability: Kynar® PVDF is preferred for corrosive non-high-temperature applications, while Torlon® PAI is justified for high-performance critical components where failure risks could lead to costly downtime, such as aerospace engine parts and semiconductor manufacturing equipment.
🎯 Conclusion
Solvay Torlon® Series PAI and Arkema Kynar® Series PVDF are both high-performance materials, but their unique properties make them suitable for distinct industrial scenarios. Torlon® PAI excels in high-temperature, high-load, and wear-intensive applications, while Kynar® PVDF dominates in corrosive (especially alkaline) and cost-sensitive environments. By aligning material properties with application requirements and leveraging the right grades, you can enhance component durability, reliability, and operational efficiency.
For custom machining services, grade recommendations, or samples of Solvay Torlon® PAI and Arkema Kynar® PVDF, contact our team of high-performance plastic specialists. We provide tailored solutions for global industrial clients, ensuring optimal material selection and supply chain efficiency.
