🔬 PI vs PEEK vs PAI vs PVDF: A Comprehensive Comparison of Usage Scenarios and Industrial Grade Models
In the realm of high-performance specialty engineering plastics, Polyimide (PI), Polyetheretherketone (PEEK), Polyamide-Imide (PAI), and Polyvinylidene Fluoride (PVDF) stand out as core materials driving innovations in aerospace, electronics, medical devices, chemical processing, and new energy industries. Each material boasts unique thermal, mechanical, chemical, and electrical properties, making them irreplaceable in specific harsh environments. This blog provides a detailed comparison of their usage scenarios, focuses on mainstream industrial models such as PI Vespel-SP series, PEEK KT820 series, PAI Torlon® series, and PVDF Kynar® series, and integrates high-value long-tail keywords to help industrial buyers, engineers, and procurement professionals make informed material selection decisions.
📌 Polyimide (PI) Material: Vespel-SP Series and Its Dominant Applications
Polyimide (PI) is renowned as the "golden material" in high-end manufacturing due to its exceptional high-temperature resistance (continuous use temperature up to 260°C, short-term resistance to over 500°C), excellent mechanical strength, and superior electrical insulation properties . As a leading PI product line, the Vespel-SP series from DuPont sets the benchmark for high-performance PI applications, with each sub-model tailored to specific industrial needs.
🔧 Key Models of Vespel-SP Series and Their Characteristics
Vespel-SP1 is an unfilled general-purpose PI grade, featuring outstanding wear resistance and dimensional stability. It maintains structural integrity even under repeated mechanical stress and high-temperature conditions, making it ideal for precision components requiring low friction. Vespel-SP2 incorporates graphite and molybdenum disulfide fillers, enhancing its self-lubricating performance—critical for parts operating without lubrication or in harsh lubrication-deficient environments. Vespel-SP3 adds glass fiber reinforcement, boosting rigidity and creep resistance, while Vespel-SP4 is a carbon fiber-reinforced grade that offers exceptional mechanical strength and thermal conductivity, suitable for high-load structural components.
🏭 Core Usage Scenarios of PI Vespel-SP Series
In the aerospace industry, Vespel-SP series components are widely used in aircraft engines, hydraulic systems, and avionics. For example, Vespel-SP2 is employed to manufacture compressor valve plates and turbine seal rings, as its self-lubricating property reduces friction between moving parts, and its high-temperature resistance withstands the extreme heat of engine compartments . In the electronics and 5G communication field, PI films made from modified Vespel-SP grades serve as substrates for flexible printed circuits (FPC) and millimeter-wave antenna components. These films exhibit low dielectric loss (ε＜3.0) and excellent bending resistance (200,000 cycles @5mm), meeting the signal transmission requirements of high-frequency devices .
In industrial machinery, Vespel-SP3 is utilized for high-precision bearings, bushings, and guide rails in textile machines and semiconductor equipment, where its rigidity and wear resistance ensure long-term operational stability. The semiconductor industry also relies on Vespel-SP series for wafer handling fixtures, as the material is non-contaminating and resistant to harsh cleaning chemicals. Additionally, in the automotive sector, PI Vespel-SP components are used in electric vehicle (EV) battery modules and power electronics, leveraging their thermal stability to enhance battery safety and lifespan.
Long-tail keywords for PI: Vespel-SP2 self-lubricating PI for aerospace engine seals, high-temperature resistant PI Vespel-SP3 for semiconductor equipment parts, low dielectric loss PI film for 5G millimeter-wave antennas.
⚙️ Polyetheretherketone (PEEK) Material: KT820 Series and Cross-Industry Applications
Polyetheretherketone (PEEK) is a semi-crystalline thermoplastic with a balanced combination of high-temperature resistance (continuous use up to 240°C), chemical inertness, biocompatibility, and mechanical strength . The Ketaspire® KT820 series from Solvay (formerly Cytec) is a flagship PEEK line, widely adopted in medical, oil and gas, automotive, and electronics industries due to its customizable formulations.
🔧 Key Models of KT820 Series and Their Characteristics
KT820 GF15 is a 15% glass fiber-reinforced PEEK grade, offering enhanced strength, rigidity, and dimensional stability compared to unfilled PEEK. Its optimized glass fiber content balances mechanical performance and toughness, reducing anisotropy by 30% compared to 30% glass fiber-reinforced alternatives, making it suitable for injection-molded structural parts . KT820 CF30 is a carbon fiber-reinforced grade with superior fatigue resistance, wear resistance, and electrical conductivity, ideal for high-load, high-speed components. KT820 NL is a non-lubricated grade designed for high-temperature environments up to 260°C, maintaining stable performance in harsh conditions without additional lubrication. KT820 UFP features ultra-fine particles, ensuring excellent surface finish for precision components.
🏭 Core Usage Scenarios of PEEK KT820 Series
The medical industry is a major consumer of KT820 series PEEK, thanks to its biocompatibility and sterilization resistance. KT820 GF15 is used to manufacture surgical instruments, dental drills, and orthopedic implants (e.g., spinal fusion cages), as it can withstand over 3,000 cycles of autoclave sterilization at 134°C and exhibits mechanical properties similar to human bone . In the oil and gas sector, KT820 CF30 is employed for downhole tools, wellhead equipment, and chemical transport pipes, resisting corrosive fluids (acids, bases, and organic solvents) and high-pressure/high-temperature (HPHT) conditions—its chemical resistance is comparable to nickel steel, with only concentrated sulfuric acid able to degrade it .
In the automotive industry, KT820 series components contribute to vehicle lightweighting and efficiency. KT820 GF15 is used for engine covers, bearing seals, and brake system parts, withstanding high temperatures and mechanical stress while reducing weight compared to metal alternatives. For electronics, KT820 NL is utilized in connectors, insulation films, and semiconductor processing equipment, as its electrical insulation properties remain stable in high-temperature, high-humidity environments. Additionally, in the aerospace field, KT820 series parts are found in aircraft interior components (seat frames, luggage racks) and rocket engine insulation, leveraging their flame retardancy (UL 94 V-0 rating) and hydrolysis resistance .
Long-tail keywords for PEEK: Solvay KT820 GF15 PEEK for medical orthopedic implants, chemical-resistant KT820 CF30 PEEK for oil and gas downhole tools, high-temperature KT820 NL PEEK for automotive engine components.
🔩 Polyamide-Imide (PAI) Material: Torlon® Series and High-Stress Applications
Polyamide-Imide (PAI) is a high-performance thermoplastic with the highest mechanical strength and rigidity among thermoplastics at temperatures up to 275°C . Torlon® series, manufactured by Solvay, is the leading PAI product line, offering exceptional wear resistance, creep resistance, and chemical stability, making it a preferred alternative to metals in harsh industrial environments.
🔧 Key Models of Torlon® Series and Their Characteristics
Torlon® 4203L is an unfilled general-purpose PAI grade with excellent toughness and processability, suitable for precision machined parts requiring high dimensional accuracy. Torlon® 5030 is a glass fiber-reinforced grade, providing high rigidity and low creep, ideal for high-load components operating at elevated temperatures. Torlon® 7130 is a carbon fiber-reinforced grade with superior fatigue resistance and thermal conductivity, designed for high-speed, high-stress applications. Wear-resistant grades such as Torlon® 4630 and 4645 are formulated with lubricating fillers—4630 excels in dry environments, while 4645 performs well in lubricated conditions .
🏭 Core Usage Scenarios of Torlon® PAI Series
In industrial machinery, Torlon® series is widely used for wear-intensive components. Torlon® 4630 is employed for bearings, bushings, and piston rings in compressors and pumps, operating without lubrication at high temperatures and pressures. Torlon® 5030 is used for gear shafts and valve stems in chemical processing equipment, resisting corrosive chemicals and maintaining structural integrity under long-term stress . In the aerospace industry, Torlon® 7130 is utilized for aircraft hydraulic system components and engine parts, as its high strength-to-weight ratio and fatigue resistance meet strict aviation standards.
The electronics industry uses Torlon® 4203L for semiconductor wafer handling tools and connector housings, as it is non-contaminating and resistant to plasma cleaning processes. In the automotive sector, Torlon® PAI components are found in EV powertrains and transmission systems, leveraging their thermal stability to withstand the heat generated by high-performance batteries and motors. Additionally, Torlon® powder grades are used in high-temperature adhesives, coatings, and composite matrices for industrial equipment, enhancing surface durability and corrosion resistance .
Long-tail keywords for PAI: Torlon® 5030 glass fiber reinforced PAI for chemical processing valves, wear-resistant Torlon® 4630 PAI for dry environment bearings, high-strength Torlon® 7130 PAI for aerospace hydraulic components.
🧪 Polyvinylidene Fluoride (PVDF) Material: Kynar® Series and Corrosion-Resistant Applications
Polyvinylidene Fluoride (PVDF) is a semi-crystalline fluoropolymer known for its exceptional chemical resistance, thermal stability, UV resistance, and dielectric properties . Kynar® series from Arkema is the most widely used PVDF line, available in homopolymers, copolymers, and specialty grades, covering chemical processing, new energy, architecture, and electronics industries.
🔧 Key Models of Kynar® Series and Their Characteristics
Kynar® 710 is a homopolymer grade with balanced mechanical properties, excellent chemical resistance, and processability, suitable for chemical equipment linings and industrial structural parts. Kynar® 720 offers superior UV resistance and color retention, making it ideal for architectural coatings and photovoltaic (PV) backsheets . Kynar® 740 is a high-temperature homopolymer (continuous use up to 150°C) with flame retardancy and chlorine resistance, compliant with FDA/USP6 standards for food and pharmaceutical applications. Kynar Flex® 2801 is a copolymer grade with high flexibility and barrier properties, used in lithium-ion battery separators and wire and cable insulation . The Kynar® CTO series is a bio-based grade for EV batteries, reducing carbon emissions by 20% while maintaining performance.
🏭 Core Usage Scenarios of Kynar® PVDF Series
In chemical processing, Kynar® 710 and 740 are the go-to materials for corrosion-resistant equipment. They are used to manufacture pipes, tanks, heat exchangers, and valves, resisting strong acids, bases, and organic solvents—critical for industries such as petrochemicals, pharmaceuticals, and water treatment . Kynar® 720 is widely used in architectural applications, including building facades, roofs, and cladding, as its UV resistance ensures long-term color stability and weatherability, even in extreme climates .
The new energy sector relies heavily on Kynar® series. Kynar Flex® 2801 is used for lithium-ion battery separators and positive electrode binders, leveraging its high dielectric strength and chemical stability to enhance battery safety and energy density . Kynar® PVDF films are also used in PV backsheets, protecting solar cells from moisture and UV radiation. In the electronics industry, Kynar® 3312C (conductive grade) is employed for antistatic components and electromagnetic shielding, while Kynar® 460 is used for wire and cable insulation in harsh outdoor environments . Additionally, Kynar® 761 is used in food contact utensil and medical devices, as its antibacterial properties and low odor comply with food safety standards.
Long-tail keywords for PVDF: Kynar® 740 PVDF for FDA-compliant chemical tanks, Kynar Flex® 2801 PVDF for lithium-ion battery separators, UV-resistant Kynar® 720 PVDF for architectural coatings.
📊 Performance Parameter Table of Core Models
|
Material Series
|
Model
|
Continuous Use Temp (°C)
|
Tensile Strength (MPa)
|
Flexural Modulus (GPa)
|
Chemical Resistance Rating
|
Key Filler/Feature
|
Electrical Insulation (kV/mm)
|
|---|---|---|---|---|---|---|---|
|
PI Vespel-SP
|
Vespel-SP1
|
260
|
100-120
|
3.8-4.2
|
High (Resists most organics)
|
Unfilled, wear-resistant
|
20-25
|
|
Vespel-SP2
|
260
|
90-110
|
3.5-3.9
|
High
|
Graphite + MoS₂, self-lubricating
|
18-22
|
|
|
Vespel-SP3
|
260
|
130-150
|
6.5-7.0
|
High
|
Glass fiber reinforced
|
15-20
|
|
|
Vespel-SP4
|
260
|
160-180
|
8.0-8.5
|
High
|
Carbon fiber reinforced, thermal conductive
|
10-15
|
|
|
PEEK KT820
|
KT820 GF15
|
240
|
120-140
|
6.0-6.5
|
Excellent (Resists acids/bases)
|
15% glass fiber, low anisotropy
|
25-30
|
|
KT820 CF30
|
240
|
180-200
|
12.0-12.5
|
Excellent
|
30% carbon fiber, conductive
|
5-10
|
|
|
KT820 NL
|
260
|
90-110
|
3.2-3.6
|
Excellent
|
Non-lubricated, high-temp stable
|
22-27
|
|
|
KT820 UFP
|
240
|
85-105
|
3.0-3.4
|
Excellent
|
Ultra-fine particles, high surface finish
|
23-28
|
|
|
PAI Torlon®
|
Torlon® 4203L
|
275
|
95-115
|
3.5-4.0
|
High (Resists industrial solvents)
|
Unfilled, high processability
|
18-23
|
|
Torlon® 5030
|
275
|
140-160
|
7.5-8.0
|
High
|
Glass fiber reinforced, low creep
|
14-19
|
|
|
Torlon® 7130
|
275
|
170-190
|
10.0-10.5
|
High
|
Carbon fiber reinforced, fatigue-resistant
|
8-13
|
|
|
Torlon® 4630
|
275
|
85-105
|
3.0-3.5
|
High
|
Lubricating fillers, dry-environment wear-resistant
|
16-21
|
|
|
PVDF Kynar®
|
Kynar® 710
|
150
|
50-60
|
1.8-2.2
|
Superior (Resists most corrosives)
|
Homopolymer, processable
|
20-25
|
|
Kynar® 720
|
150
|
45-55
|
1.6-2.0
|
Superior
|
Homopolymer, UV-resistant
|
19-24
|
|
|
Kynar® 740
|
150
|
55-65
|
2.0-2.4
|
Superior
|
Homopolymer, FDA-compliant
|
21-26
|
|
|
Kynar Flex® 2801
|
150
|
40-50
|
1.2-1.6
|
Superior
|
Copolymer, flexible, barrier properties
|
22-27
|
The above table summarizes the core performance parameters of mainstream models of PI, PEEK, PAI, and PVDF materials, providing a direct reference for industrial material selection. The parameters are based on standard test conditions (ASTM/DIN) and may vary slightly with processing methods and application environments.

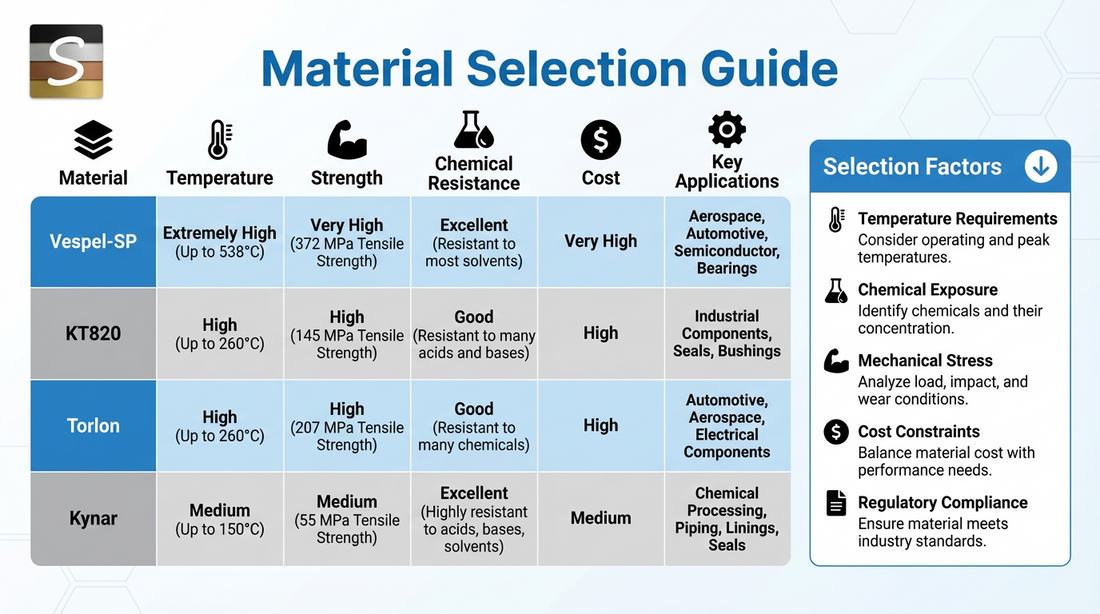

📊 Comparative Analysis of Usage Scenarios Across Four Materials
Understanding the strengths and limitations of PI, PEEK, PAI, and PVDF is crucial for material selection. PI (Vespel-SP) excels in ultra-high-temperature and high-frequency electronic applications but has higher processing costs. PEEK (KT820) offers a balanced performance profile, making it versatile across medical, aerospace, and industrial sectors, though its price is a constraint for low-cost applications. PAI (Torlon®) is superior in high-stress, high-temperature mechanical components, serving as an excellent metal replacement, but it has limited processability compared to other thermoplastics. PVDF (Kynar®) is unmatched in corrosion resistance and UV stability, ideal for chemical and architectural applications, but its mechanical strength at elevated temperatures is lower than PI, PEEK, and PAI.
For aerospace engine components requiring extreme temperature resistance, PI Vespel-SP2 and PAI Torlon® 7130 are preferred. For medical implants, PEEK KT820 GF15 is the top choice due to its biocompatibility. For chemical processing equipment, PVDF Kynar® 740 offers unbeatable corrosion resistance. For 5G electronics, PI Vespel-SP films provide low dielectric loss, while PVDF Kynar Flex® 2801 is optimal for battery components.
🎯 Conclusion: Selecting the Right Specialty Plastic for Your Industrial Needs
PI, PEEK, PAI, and PVDF—each represented by leading series like Vespel-SP, KT820, Torlon®, and Kynar®—play irreplaceable roles in advanced manufacturing. The key to successful material selection lies in aligning the material’s properties with the application’s environmental conditions (temperature, chemicals, stress) and performance requirements. By understanding the unique characteristics and use cases of each material and model, industrial professionals can optimize product reliability, durability, and cost-effectiveness.
