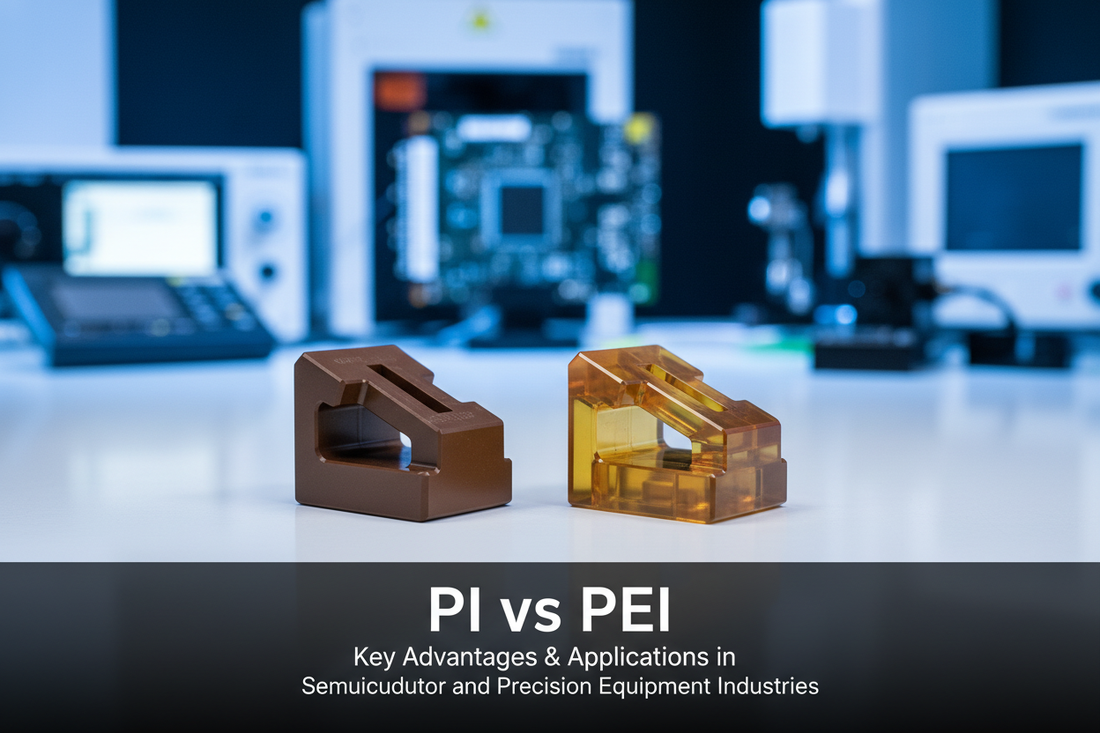

PI vs PEI: A Comprehensive Comparison for Semiconductor and Precision Equipment Applications

In the semiconductor manufacturing equipment and precision instrumentation industries, imide-based high-performance polymer materials have long occupied a central position in high-end engineering plastic applications due to their outstanding thermal resistance, electrical insulation, and mechanical properties. Among these, PI (Polyimide) and PEI (Polyetherimide) are the two most representative materials. Although both belong to the imide-based high-performance polymer family, they differ significantly in material structure, performance boundaries, and application scenarios. This article provides an in-depth multi-dimensional comparison of PI and PEI's application advantages in semiconductor manufacturing equipment and precision instrumentation to help engineers make scientifically sound high-performance engineering plastic selection decisions.

Material Structure: The Essential Differences Between PI and PEI

PI (Polyimide) is a class of high-performance polymers with imide rings as the main chain repeating unit. Depending on the synthesis route and monomer composition, PI can be divided into thermoset PI and thermoplastic PI. Thermoset PI (such as Vespel®) offers extremely high thermal resistance and dimensional stability but poor processability; thermoplastic PI (such as Torlon® PAI) maintains excellent thermal resistance while offering better processability. The core advantage of PI materials lies in their extremely high thermal stability — some PI grades can achieve continuous service temperatures exceeding 300°C with even higher short-term peak tolerance.

PEI (Polyetherimide) is a modified derivative of PI in which flexible ether linkages are introduced into the PI molecular chain, commercially known as the Ultem® series. The introduction of ether linkages significantly improves thermoplastic processability and toughness while retaining the excellent thermal resistance and electrical insulation of the imide ring, enabling PEI to be manufactured into complex-shaped precision components through injection molding, extrusion, and CNC machining — offering clear advantages over PI in cost and processing efficiency.

Ultra-High Thermal Resistance Comparison: PI's Extreme Advantage

In thermal resistance, PI materials demonstrate a significant advantage over PEI — the core reason why PI is irreplaceable in extreme high-temperature semiconductor applications. Thermoset PI (such as Vespel® SP series) achieves continuous service temperatures of 260°C to 300°C, with short-term thermal resistance in inert atmospheres exceeding 400°C, making it one of the highest thermal resistance commercially available high-performance engineering plastics.

In semiconductor high-temperature process equipment — including high-temperature CVD furnace tube internal structural components, ion implanter high-temperature zone supports, high-temperature annealing equipment internal positioning components, and high-temperature probe test systems — PI materials can operate stably for extended periods under extreme high-temperature conditions that PEI cannot withstand, maintaining excellent mechanical performance and dimensional accuracy while effectively preventing process deviation and equipment failure caused by material thermal deformation.

PEI (Ultem® 1000) has a glass transition temperature of 217°C and a continuous service temperature of approximately 170°C. For semiconductor equipment applications where operating temperatures exceed 180°C, PEI's thermal resistance is approaching its performance boundary, making PI the more reliable choice. For applications operating below 170°C, PEI's thermal resistance fully meets requirements while offering clear advantages in cost and processability.

Electrical Insulation Comparison: PEI's Comprehensive Advantage

In electrical insulation performance, PEI demonstrates comprehensive advantages over PI. PEI (Ultem® 1000) achieves a volume resistivity of up to 10¹⁷ Ω·cm, dielectric strength exceeding 830 V/mil, a dielectric constant of approximately 3.15 at 1 MHz, and an extremely low dissipation factor — maintaining stable electrical insulation characteristics across wide temperature and frequency ranges, making it an ideal material for semiconductor IC test sockets, probe card insulation substrates, high-frequency signal transmission isolators, and high-voltage insulation supports.

PI materials also deliver excellent electrical insulation, with volume resistivity typically ranging from 10¹⁵ to 10¹⁷ Ω·cm and dielectric strength of approximately 500 to 700 V/mil, but electrical insulation metrics vary significantly across different PI grades. In applications requiring both ultra-high temperature resistance and electrical insulation simultaneously, PI is the only material that can meet requirements; in applications with moderate operating temperatures and extremely high electrical insulation requirements, PEI is often the more cost-effective optimal solution.

In precision instrumentation, PEI's outstanding electrical insulation effectively suppresses electromagnetic interference (EMI) and electrostatic discharge (ESD) effects on precision sensors, high-accuracy measurement circuits, and weak signal acquisition systems — significantly enhancing instrument measurement accuracy and long-term stability.

Dimensional Stability Comparison: Key Considerations for Precision Manufacturing

In precision manufacturing, dimensional stability is one of the core considerations in material selection. Thermoset PI (such as Vespel®) has a coefficient of thermal expansion (CTE) of approximately 5.0×10⁻⁵/°C and extremely low moisture absorption (approximately 0.24%), demonstrating outstanding dimensional stability across a wide temperature range — making it an ideal material for semiconductor lithography equipment precision brackets, wafer bonding alignment fixtures, and high-temperature precision positioning components.

PEI (Ultem® 1000) has a CTE of approximately 5.6×10⁻⁵/°C and 24-hour water absorption of approximately 0.25% — also excellent dimensional stability. In precision instrument applications with moderate operating temperatures, PEI's dimensional stability fully meets micrometer-level accuracy requirements at significantly lower processing costs than PI. In high-precision applications including EUV lithography alignment system precision brackets, coordinate measuring machine (CMM) structural elements, and precision optical platform mounting bases, PEI is the optimal solution balancing performance and cost.

Chemical Resistance Comparison: Different Strengths

In chemical resistance, both materials have their respective strengths. Thermoset PI demonstrates good resistance to most organic solvents, dilute acids, and dilute bases, performing well in high-temperature chemical-contact components of semiconductor wet process equipment. However, PI's resistance to strong bases and certain strongly oxidizing media is relatively limited, requiring engineers to conduct compatibility assessments based on specific process chemicals during material selection.

PEI demonstrates good resistance to dilute acids, dilute bases, alcohols, and aliphatic hydrocarbon solvents, but its resistance to concentrated strong bases, halogenated solvents, and certain strongly oxidizing media is similarly limited. In strongly corrosive semiconductor wet process environments, PEEK or PFA are generally more suitable material choices than either PI or PEI.

Machinability and Cost Comparison: PEI's Significant Economic Advantage

In machinability and material cost, PEI holds a significant advantage over PI. Thermoset PI (such as Vespel®) is difficult to machine and extremely expensive — typically 5 to 10 times or more the price of PEI — primarily used in critical components where performance requirements are extremely stringent and cost sensitivity is relatively low.

PEI offers excellent CNC machinability with low tool wear rates, high machining efficiency, and moderate material costs, enabling significant reductions in overall manufacturing costs in high-volume precision component production. Thermoplastic PI (such as PAI) offers processability and cost between thermoset PI and PEI, serving as a compromise choice for some mid-to-high temperature application scenarios.

Flame Retardancy and Low Outgassing: Shared Advantages and Differences

In flame retardancy, both materials perform excellently. PEI achieves UL94 V-0 flame retardancy rating without flame retardant additives, and PI materials also possess outstanding inherent flame retardancy — both complying with international safety standards for semiconductor equipment and precision instruments.

For high vacuum applications, thermoset PI has an extremely low outgassing rate, making it an ideal material for internal structural components in ion implanters, electron beam lithography systems, and ultra-high vacuum thin film deposition equipment chambers. PEI's outgassing performance also meets the application requirements of most high-vacuum semiconductor equipment, but in ultra-high vacuum (UHV) environments, PI is generally the more reliable choice.

Material Selection Guidance: How to Make the Optimal Decision Between PI and PEI

Based on the comprehensive comparative analysis above, engineers can reference the following principles when selecting between PI and PEI: when operating temperatures exceed 180°C, the application is in an ultra-high vacuum environment, or outgassing requirements are extremely stringent, prioritize PI; when operating temperatures are below 170°C, electrical insulation requirements are extremely high, manufacturing cost control is important, or complex-shaped components need to be manufactured through injection molding, PEI is often the more cost-effective optimal solution. In some complex application scenarios, PI and PEI can also be used in combination to fully leverage their respective performance advantages.

Conclusion

PI and PEI each possess irreplaceable performance advantages and clear application boundaries. Deeply understanding the structural differences and performance characteristics of these two materials, and conducting scientifically sound material selection based on the specific application scenario's temperature, vacuum level, electrical insulation, and precision requirements, is the key to achieving optimal product performance for semiconductor equipment engineers and precision instrument designers.
